Hnub Ci -Powered EV Charging Station

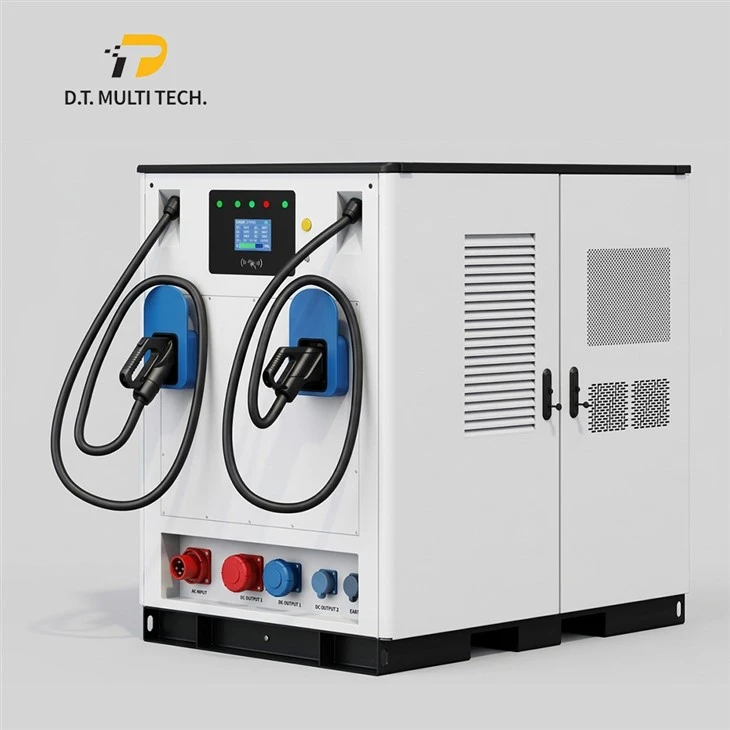

Ua tiav kev tswj hwm ntawm koj cov lag luam EV infrastructure nrog rauDTSolarPower Mobile BESS EV Charging Chaw nres tsheb. Tsim los ua txhua yam -hauv-ib qho, siab- lub peev xwm lub zog hub, qhov kev sib xyaw ua ke no ua ke ua ke siab -efficiency N- hom hnub ci PV modules, hnyav- lub luag haujlwm mounting qauv, bi-directional Power Conversion System (PCS), ib qho Kev Siv Hluav Taws Xob (PCS), Kev Siv Hluav Taws Xob (Qib Hniav DC) fast charger rau hauv ib qho kev sib koom ua ke, ntsaws-thiab- ua siEV charging system.
Txhawb siab - zog 60 kW ceev them los ntawm ib rab phom, nws muab ultra- lub zog ntxiv rau lub zog tshiab, yog li txhim kho kev them nyiaj yooj yim. Nws yog qhov tsim nyog rau cov xwm txheej xws li me me - chaw them nqi, cov zej zog nyob, thiab cov chaw ua si.
Core Performance & Zoo
Kev ua haujlwm siab (Ntau dua lossis sib npaug rau 90% RTE)
DC -coupled architecture nrog siab -voltage MPPT taug qab.
Txo kev hloov hluav taws xob poob, ua kom lub hnub ci tawm los thiab ua kom nrawm dua qhov ROI.
Multi-Tsheb thauj neeg ceev ceev
Dual - phom dynamic zog faib xa mus txog 160kW + them ceev ceev.
30-feeb kev them nqi nrawm nrawm, txhawb nqa 30–40+ tsheb thauj khoom txhua hnub.
Muaj Kev Ntseeg & Kev Nyab Xeeb
IP54 / IP55 ntsuas, ua kua ua kua txias, thiab kev sib xyaw aerosol tua hluav taws.
Ua haujlwm zoo ntawm -25℃mus rau 55℃nrog 8, 000+ roj teeb lub neej voj voog, txo tus nqi tu.
Flexible BESS & Off -Grid Capability
LiFePO4 roj teeb muaj peev xwm ntawm 32 kWh txog 261 kWh + nrog cov ntse EMS.
Muab kab hluav taws xob-buffering los hla cov nqi hloov pauv hloov pauv thiab ua kom 100% tawm- txoj haujlwm ua haujlwm.
Khoom Description
|
Qauv |
15 kW +32kWh-1 Gun |
25 kW +48kWh-1 Gun |
40kW+48kWh-1 phom |
60 kW +60kWh-2 Gun |
|
Roj teeb |
||||
|
Hom roj teeb |
LifePO4 roj teeb |
|||
|
Rated Zog |
32 kWh |
48 kWh |
48 kWh |
60 kWh |
|
Txoj kev txias |
Cua -Cua txias |
|||
|
Fast DC Charger |
||||
|
Hom phom |
GBT (CCS1 / CCS2 / CHAdMo Optional) |
|||
|
Max. Charger zog |
15 kWm |
25 kWm |
40 kWm |
60 kWm |
|
Charger Voltage Range |
200 ~ 750VDC |
200 ~ 750VDC |
200 ~ 1000VDC |
200 ~ 1000VDC |
|
Charger Tam sim no |
20A |
25A |
40A |
60A |
|
Quantity of Gun |
1 |
1 |
1 |
2 |
|
Phom Hlau Ntev |
3 |
3 |
5 |
5 |
|
Hom kev ua haujlwm |
Ib leeg-Akone (DCPPL1.6) xaiv tau |
|||
|
DC Recharge |
||||
|
Max. Recharge zog |
/ |
/ |
20 kWm |
30 kWm |
|
Quantity of Gun |
1 |
1 |
1 |
1 |
|
Hom qhov (socket). |
GBT (CCS1 / CCS2 / CHAdMo Optional) |
|||
|
AC Recharge |
||||
|
Max. Recharge zog |
15 kWm |
20 kWm |
30 kWm |
30 kWm |
|
AC Hom |
3-theem (400VAC) |
3-theem (400VAC) |
3-theem (400VAC) |
2/3 theem (400Vac / 230Vac) |
|
PV Recharge |
||||
|
Max. Hwj chim |
15 kWm |
30 kWm |
35 kW |
35 kW |
|
Max. PV voltage |
500 Vdc |
500 Vdc |
820vd wb |
820vd wb |
|
MPPT Voltage Ntau |
90 ~ 450VDC |
90 ~ 450VDC |
200 ~ 800VDC |
200 ~ 800VDC |
|
Qhov ntau ntawm MPPT Channel |
3 |
3 |
2 |
2 |
|
AC OUT (Tawm- daim phiaj) |
||||
|
Rated zog |
15 kWm |
25 kWm |
30 kWm |
30 kWm |
|
AC voltage |
400Vac / 230Vac (3-theem) |
|||
|
Rated Zaus |
50Hz / 60Hz |
|||
|
Max. AC tam sim no |
22A |
35A |
45A |
45A |
|
General Parameter |
||||
|
Hom kev sib txuas lus |
RS485 (WiFi / 4G yeem) |
|||
|
IP Qib |
IP54 |
|||
|
Qhov hnyav (kg) |
500kg (kwv yees) |
700kg (kwv yees) |
700kg (kwv yees) |
850kg (kwv yees) |
Core Solution Features
Fast DC CHARGING: Ceev ceev DC ceev- thev naus laus zis tso cai rau koj kom them ntau lub tsheb hauv lub sijhawm tsawg, ua kom qhov chaw nres tsheb loj tshaj plaws thiab ua haujlwm tau zoo.
Hnub ci-POWERED ENERGY: Siv cov khoom siv huv si, lub hnub ci rov ua dua tshiab kom them cov tsheb ncaj qha, txo koj cov phiaj xwm kev vam khom thiab txo nqi hluav taws xob.
INTEGRATED BESS STORAGE: Siab- lub peev xwm roj teeb cia tiv thaiv koj cov haujlwm nrog lub zog xa khoom ruaj khov thiab lub ncov ntse - muaj peev xwm shaving.
Ideal Applications
Peb txhua tus -hauv-ib lub hnub ci them lub hub yog tsim los rau ntau hom kev lag luam thiab hauv nroog cov kev xav tau:
Fleet Operators: Ua kom yooj yim rau hmo ntuj thiab nruab hnub nrawm rau kev lag luam vans thiab tsheb thauj khoom.
Cov tsev lag luam: Txhim khu kev lag luam kev ruaj ntseg profile thaum muab cov nqi them ceev ceev rau cov neeg ua haujlwm thiab cov neeg tuaj xyuas.
Chaw nres tsheb roj & Chaw Pabcuam: Txhim kho cov chaw nres tsheb ceev ceev rau hauv EV lub zog hubs niaj hnub yam tsis muaj kab sib chaws loj.
Thauj Terminals: Xa high-throughput them rau pej xeem tsheb npav, shuttles, thiab tsheb thauj mus los hauv nroog.
LGUs & Public Charging Stations: Siv txhim khu kev qha, ntsuab them nyiaj infrastructure rau tsoom fwv hauv zos thiab cov chaw pej xeem.

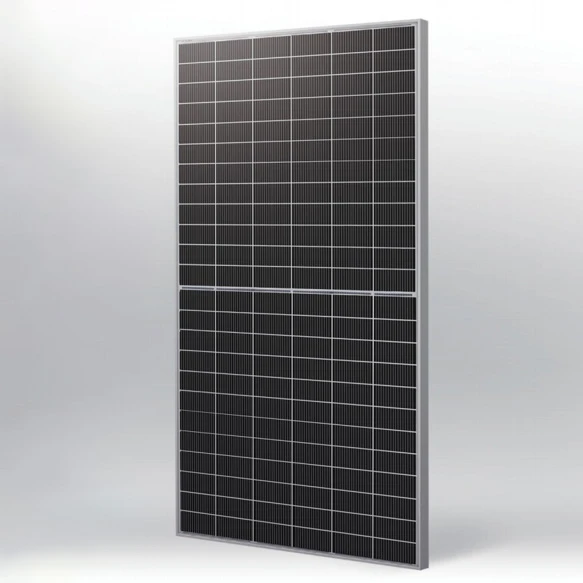

N-Type Bifacial Ob -Iav Solar Panels
- High conversion efficiency vim yog sab saum toj zoo wafers thiab advanced cell technology
- Kev xaiv zoo tshaj plaws rau kev teeb tsa hauv av loj
- N hom tshuab: N- hom module muaj kev ntseeg tau zoo dua thiab qis dua LID/LETID
- Xuab zeb tshuab kuaj, ntsuas ntsev pos huab thiab kuaj ammonia dhau mus rau kev ua haujlwm hnyav
- Xaiv cov khoom siv encapsulating thiab nruj cov txheej txheem ntau lawm tswj xyuas kom cov khoom yog siab PID resistant thiab snail trails dawb
|
Hluav taws xob Specification (STC) |
||
|
Lub zog siab tshaj plaws |
Pmax (W) |
590 |
|
Lub zog siab tshaj plaws |
Vmp (V) |
44.15 |
|
Maximum fais fab tam sim no |
Imp (A) |
13.37 |
|
Qhib Circuit Court voltage |
Voc (V) |
52.2 |
|
Short Circuit Current |
Isc(A) |
14.13 |
|
Module Efficiency |
(%) |
22.84 |
|
Mechanical Data |
||
|
Xov tooj ntawm tes |
144 Cells (6 × 24) |
|
|
Qhov Loj ntawm Module L * W * H (mm) |
2278 × 1134 × 30mm (89.68 × 44.65 × 1.18 nti) |
|
|
Qhov hnyav (kg) |
31.2kg 3 |
|
|
Pem Hauv Ntej Sab iav |
2.0mm (0.08 nti), Anti- Reflection Txheej |
|
|
Back Side iav |
2.0mm (0.08 nti), Thaum tshav kub kub Strengthened iav |
|
|
Ncej |
Anodized aluminium alloy |
|
|
J-Box |
Kev ntsuas IP68 |
|
|
Kab |
4.0mm², Portrait: +300/-200mm ntev tuaj yeem hloov kho |
|
|
Tus naj npawb ntawm diodes |
3 |
|
|
Cua / Daus Load |
2400Pa / 5400Pa |
|
|
Txuas |
MC Compatible |
|
|
Bifaciality (%) |
80±5 |
|

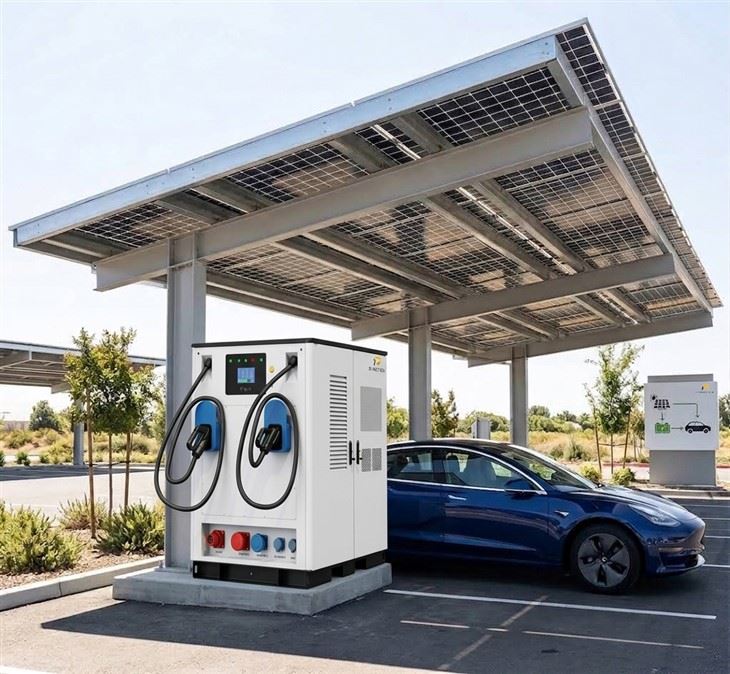

Kev Lag Luam Hnub Ci Carport & Hauv av- Mount Structural Racks
Hnub ci carports yog qhov yooj yim tab sis muaj txiaj ntsig zoo photovoltaic kev koom ua ke. Los ntawm kev txhim kho lub hnub ci vaj huam sib luag ntawm lub ru tsev ntawm carports, lawv tsis tsuas yog muab ntxoov ntxoo thiab rwb thaiv tsev kub, tab sis kuj siv lub hnub ci zog, hloov mus rau hauv hluav taws xob. Lawv tuaj yeem siv rau hauv cov chaw nres tsheb, cov qauv ntxoov ntxoo, thiab txawm tias cov chaw nres tsheb npav, nthuav qhia cov kev xav tau tseem ceeb thiab tsis muaj kev lag luam thoob ntiaj teb.
Siab - siv hnub ci carport nrog lub neej ntev tshaj25xyoo.
Tswv yim tsim
FAQ
Q: Lub sijhawm kwv yees Rov Los Ntawm Kev Lag Luam (ROI) yog dab tsi rau qhov kev daws teeb meem no?
A: Nyob ntawm cov nqi hluav taws xob hauv zos, hnub ci irradiance, thiab kev lag luam them nqi, feem ntau cov neeg ua haujlwm tau them rov qab tag nrho hauv 3 txog 5 xyoos.
Q: Lub kaw lus puas tuaj yeem ua haujlwm 100% tawm- daim phiaj nyob rau hauv tej thaj chaw deb lossis qhov chaw kub ntxhov?
A: Yog lawm. Nyob rau hauv - kab sib chaws hom, lub siab -efficiency N- hom hnub ci array tsub lub LiFePO4 roj teeb lub txhab nyiaj, ua kom tsis tu ncua, ywj siab DC them ceev yam tsis muaj kev sib txuas rau hauv daim phiaj hluav taws xob loj.
Q: Muaj pes tsawg lub tsheb tuaj yeem them ib txhij, thiab qhov kev sib ntsib ceev npaum li cas?
A: Peb cov txheej txheem txheej txheem muaj ob - phom dynamic zog faib. Ib lub tsheb ua lag luam lossis cov neeg caij tsheb EV tuaj yeem raug them los ntawm 20% mus rau 80% lub xeev-ntawm-them li ntawm 30 mus rau 45 feeb, tso cai rau ib lub chaw nres tsheb yooj yim ua 30 mus rau 40+ kev them nqi ib hnub.
Q: Lub kaw lus tag nrho yog dab tsi -trip efficiency (RTE)?
A: Ua tsaug rau peb qhov siab -voltage DC-coupled architecture thiab integrated MPPT controllers, lub kaw lus ua tiav tag nrho Round-Trip Efficiency (RTE) tshaj 90%, txo qis zog poob ntawm hnub ci tiam, roj teeb cia, thiab lub tsheb tso zis.
Q: Qhov ntev ntawm kev thauj mus los yog dab tsi, thiab tuaj yeem hloov pauv tau yog tias xav tau?
A: Cov chav tseem ceeb yog tsim nyob rau hauv cov txheej txheem ntim khoom / txee hneev taw (ISO-ua raws), ua kom yooj yim rau nkoj los ntawm hiav txwv freight thiab thauj los ntawm cov tsheb thauj khoom txheem.
