Xiamen DT Multi Tech Co., Ltd. yog ib qho ntawm feem txhim khu kev qha manufacturers thiab lwm tus neeg ntawm sab nraum zoov hnub ci teeb nyob rau hauv Suav teb. Nrog kev paub ntau, peb sov siab txais tos koj rau cov lag luam wholesale pheej yig sab nraum zoov hnub ci teeb pom kev zoo los ntawm peb lub hoobkas. Yog tias koj muaj lus nug txog kev koom tes, thov koj xav email rau peb.
High -Kev ua tau zoo Illumination

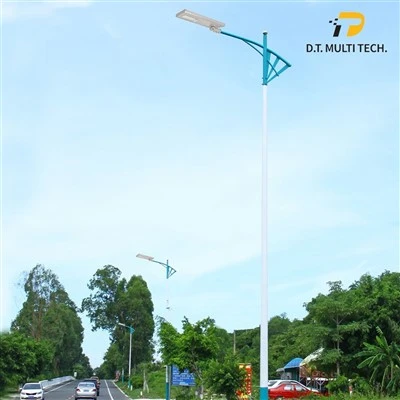

ND-T2046 seriessab nraum zoov hnub ci cheeb tsam teebxa cov khoom muaj zog, hnyav- lub luag haujlwm teeb pom kev zoo tsim tshwj xeeb rau txoj kev hauv nroog, chaw ua si, thiab cov khoom lag luam siab - kawg. Raws li kev mob siab rausolar street light manufacturers, peb tau koom ua ke cov khoom hwm zoo rau hauv kev sib tw, txhua yam - hauv - ib qho kev tsim vaj tsev. Qhov no ua kom muaj kev saib xyuas qis, kev teeb tsa nrawm nrawm, thiab kev ntseeg tau tshwj xeeb hauv qhov xav tau tshaj plaws.
Txawm hais tias koj yog EPC tus neeg cog lus sib tw rau kev sib tw ua haujlwm rau pej xeem lossis tus neeg muag khoom hauv cheeb tsam hloov kho koj cov ntawv teev npe lag luam, cov koob no muab cov ntaub ntawv pov thawj kev ua tau zoo thiab kev ua haujlwm ntev uas yuav tsum tau ua rau hnyav -cov haujlwm B2B daim ntawv thov.
Core Engineering Advantages
Txhawm rau lav 3 mus rau 5 hnub sib law liag ntawm kev ua haujlwm tas mus li, lub kaw lus siv lub zog ua kom haum, tsis siv neeg lub zog-txuag profile. Covintegrated hnub ci txoj kev teebtswj cov zis dynamically hla tus qauv 12-teev kev ua haujlwm voj voog:
Peak Sijhawm (40W / 60W / 90W qauv):Khiav ntawm 100% ci ntsa iab rau thawj 1 mus rau 2 teev yav tsaus ntuj kom haum rau siab - lub sijhawm tsheb.
Hloov Sijhawm:Tsis siv neeg hloov mus rau 50% muaj peev xwm dhau tom qab 2 mus rau 3 teev raws li kev tsheb khiav qis.
Hmo Hmo & Kaj ntug Economy Hom:Kev nyab xeeb txo qis mus rau 20% mus rau 30% cov zis tawm hauv paus, khaws cia cov roj teeb tseem ceeb thaum ua kom lub teeb pom kev ruaj ntseg tseem ua haujlwm kom txog thaum hnub tuaj.
Technical Specifications
| Lub teeb ntsuas lub zog | 40W | 60W | 90W |
| Hnub ci vaj huam sib luag | 5V/19W | 5V/32W | 5V/40W |
| LiFePO4 roj teeb | 3.2V / 30Ah | 3.2V / 40Ah | 3.2V / 60Ah |
| LED teeb qhov chaw | 3030 / 64 pcs | 3030/64PCS * 2 | 3030 / 64PCS * 3 |
| Lub teeb ntsuas lub teeb efficiency | 150 LM / W | 150 LM / W | 150 LM / W |
| Xim kub | 6000K | ||
| Xim rendering index | Ra>75 | ||
| Hnub dhau los | 3-5 hnub | ||
| Lub sijhawm them nyiaj | Tag nrho them nrog 8h hnub ci | ||
| Reference hnub ci hluav taws xob | PEB 3.62 kWh/m2 | ||
| Qib tsis muaj dej | IP65 | ||
| LED teeb lub neej | 50000H | ||
| Lub teeb qhov chaw conversion efficiency | >0.9 | ||
| Ua haujlwm kub | -20 ~ 60 degree | ||
| Kev ua haujlwm hom | 12 teev (2 teev 100% 2 teev 50% 1 teev 30%, 7 teev 20%) | 12 teev (1 teev 100%, 3 teev 50% 1 teev 30%, 7 teev 20%) | |
| Installation qhov siab | 4-5 meters | 5-6 meters | 6-8 m |
| Khoom loj | 515 * 265 * 55mm | 825 * 265 * 55mm | 985 * 265 * 55mm |
| Hnub ci vaj huam sib luag loj | 510 * 260 * 3.2 hli | 820 * 260 * 3.2 hli | 980 * 260 * 3.2 hli |
| Khoom hnyav | 3, 95 KG | 6 KG | 11.2 KWG |
| Pob qhov ntev | 565 * 340 * 100 hli | 865 * 340 * 100 hli | 1025 * 345 * 100 hli |
| Pob hnyav | 5 KG | 7.3KG ib | 12.3 KWG |
| Khoom siv | GB 6063 txhuas profile + tempered iav | ||
| 20'GP (PCS) | 1353 | 886 | 735 |
| 40'GP (PCS) | 2811 | 1840 | 1527 |
| 40 'HQ (PCS) | 3539 | 2317 | 1922 |
Kev lag luam - Qib Cov Khoom Siv Ntev
Ua kom muaj sia nyob hauv huab cua hnyav, lub tsev yog tsim los ntawm hnyav-lub luag haujlwmGB 6063 txhuas profileua ke nrog siab -transmittance tempered iav. Ua haujlwm zoo ntawm qhov kub ntawm -20℃thiab +60 degree, tag nrho cov luminaire nqa ib qhoIP65 waterproof ntsuam xyuas. Tus hwm 3030 SMD LED array muab lub luminous efficiency ntawm150 LM / Wnrog rau tag nrho cov ntsuas tivthaiv lub neej ntev txog 50,000 teev, ua rau nws yog qhov kev xaiv zoo tshaj plaws rauindustrial solar txoj kev teeb pom kev zootej yaam num.
FAQ
Q: Koj qhov kev qhia tshwj xeeb hais txog 3-5 hnub ntawm kev tswj hwm tus kheej. Yuav ua li cas lub kaw lus ua tiav qhov no thaum lub sij hawm ntev los nag lossis overcast?
A: Lub fixture tsis khiav ntawm 100% muaj peev xwm txhua hmo. Nws muab qhov ci ci siab tshaj plaws thaum thawj 1-2 teev yav tsaus ntuj, tom qab ntawd cia li nqis mus rau 50%, thiab poob rau 20%-30% kev lag luam hom thaum tsaus ntuj / ua ntej kaj ntug.
Q: Puas yog IP65 ntsuas dej tsis muaj ntawv pov thawj rau siab - cov av noo thiab huab cua hnyav?
A: Yog, peb qhov ntsuas IP65 tau lees paub tag nrho. Lub luminaire nta seamless integrated tsim nrog qib siab -qib, anti- laus silicone sealing gaskets tiv thaiv lub roj teeb compartment, LED tsav tsheb, thiab kho qhov muag arrays.
Q: Dab tsi mounting accessories suav nrog, thiab dab tsi ncej diameters tau tshaj?
A: Txhua chav tsev los ntawm cov qauv nrog lub zog galvanized steel mounting caj npab / bracket tsim rau dual -siv installation. Nws tuaj yeem raug ntsia ncaj qha rau cov phab ntsa pob zeb lossis clamped rau cov ncej cylindrical.
Q: Puas yog lub teeb sib xyaw ua ke no xav tau cov chaw taws teeb tswj rau kev ua haujlwm txhua hnub, lossis nws puas siv tau?
A: Nws yog 100% automated rau tes-kev ua haujlwm dawb hauv nroog. Lub kaw lus siv lub hnub ci vaj huam sib luag nws tus kheej ua photoelectric sensor. Nws cia li hloov lub teeb ci LED thaum tsaus ntuj thaum lub teeb ci ntsa iab ploj mus, khiav nws qhov programmed 12-teev dimming voj voog, thiab kaw thaum kaj ntug kom pib them.
Q: Cov roj teeb lithium raug cais raws li Chav Kawm 9 Cov Khoom Phem. Koj puas muab cov ntaub ntawv tsim nyog rau kev lis kev cai?
A: Yog lawm. Peb tau ua raws li kev cai thoob ntiaj teb maritime thiab huab cua thauj. Txhua qhov khoom xa tuaj yog nrog los ntawm UN38.3 daim ntawv tshaj tawm kev xeem, Cov Ntaub Ntawv Kev Nyab Xeeb Cov Ntaub Ntawv (MSDS), thiab Daim Ntawv Pov Thawj Kev Nyab Xeeb.
Cim npe nrov: Sab nraum zoov solar cheeb tsam teeb, sab nraum zoov solar cheeb tsam teeb manufacturers, lwm tus neeg, Hoobkas
